Setting TransferFunction in 3D

Sample code for general purpose colour/opacity adjustment.

The result might not good good on particular data because this is intended purely for demonstration purposes!

 Color[] TF = new Color[1000];
 int[] lookup = new int[] {
	// Hounsfield value, Red, Green, Blue, Alpha
	0,0,0,0,0, // 1-100 = transparent
	200,0,0,0,0,
	580,255,255,255,50,
	660,0,0,255,200,
	900,255,0,0,0, // 900 up = transparent
	1000,255,255,0,0
 };

 for (int j = 0; j < lookup.Length; j += 5)
 {
	for (int ii = 0; ii < lookup[j]; ii++)
	{
	   float p0 = (float)(ii - lookup[j - 5]) / (lookup[j] - lookup[j - 5]);
	   float p1 = (float)(lookup[j] - ii) / (lookup[j] - lookup[j - 5]);

	   int r = (int)(lookup[j + 1] * p0 + lookup[j - 4] * p1);
	   int g = (int)(lookup[j + 2] * p0 + lookup[j - 3] * p1);
	   int b = (int)(lookup[j + 3] * p0 + lookup[j - 2] * p1);
	   int a = (int)(lookup[j + 4] * p0 + lookup[j - 1] * p1);

	   TF[ii] = Color.FromArgb(a, r, g, b);
	}
 }

 image_3D.SetTransferFunction(0, 1000, TF); // image_3D is a DicomImage3D instance

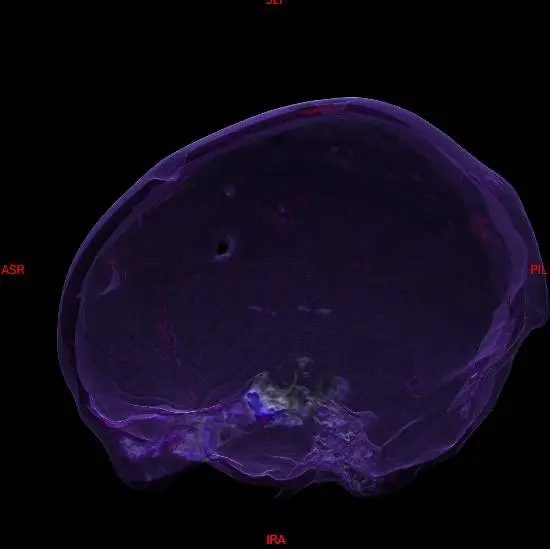

Sample output:
